How to Install the Oil Pump & Screen on a Small Block 302 V8

First Steps15 photos1 videoAbout 1 minute of reading
  1. 01
  2. 02
  3. 03
  4. 04
  5. 05
  6. 06
  7. 07
  8. 08
  9. 09
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17

We are beginning the installation of new parts on the budget build 302 engine. We begin with the new high volume Melling oil pump and Melling oil pump screen. These parts are made in the U.S.A. and are very high quality. The oil pimp comes with a new hardened drive rod and the pump screen comes with a new gasket. You will need to clean and reuse your old bolts for this install. I purchased my parts from a local performance parts store called Gearhead Performance. They are extremely knowledgeable and I like to support local businesses as much as possible. The prices and links below are for your reference only.

PART NUMBERS:

MELLING HIGH VOLUME OIL PUMP: M-68HV ~ $49.97 SUMMIT RACING: Purchase Here
MELLING OIL PUMP SCREEN: 68-S ~ $12.97 SUMMIT RACING: Purchase Here

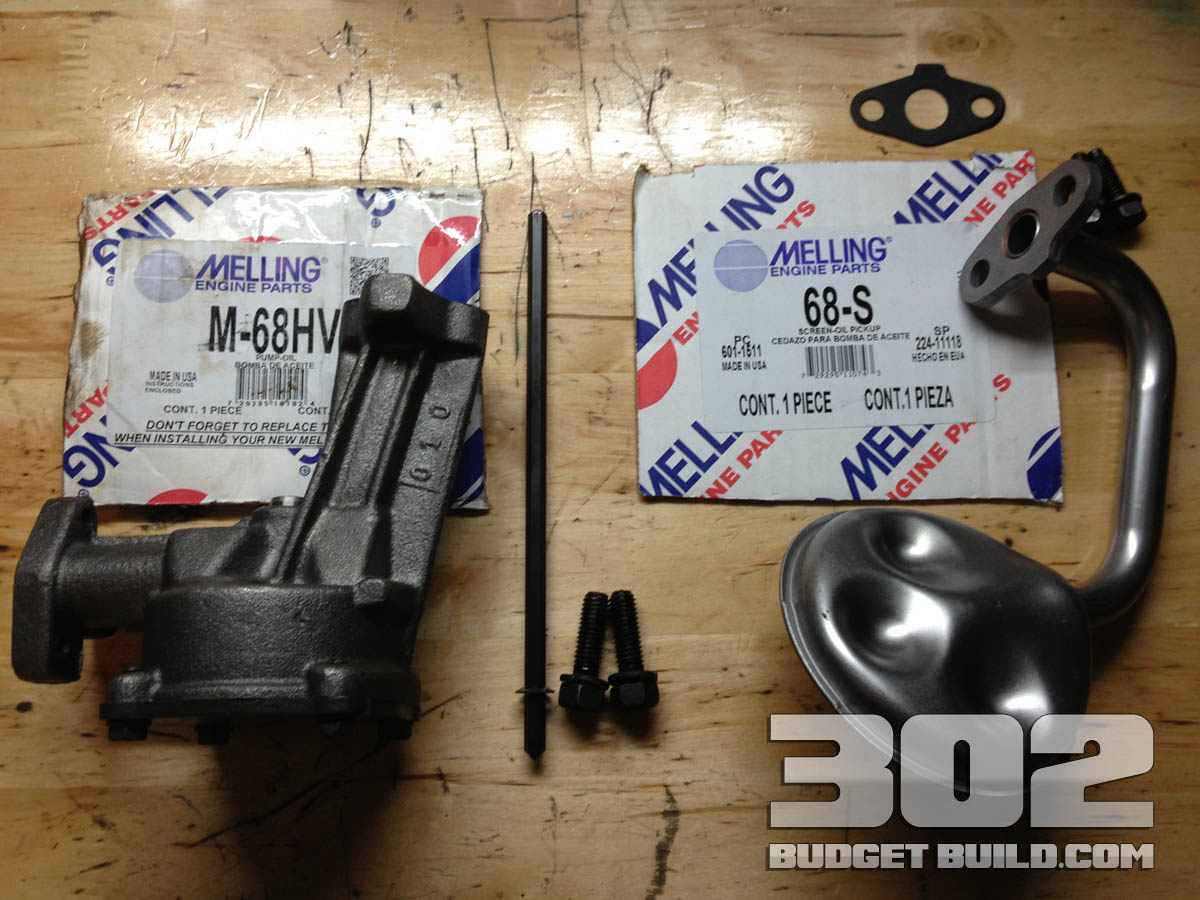

01Melling oil pump and screen with part numbers to be installed on the small block ford 302
02Melling oil pump HIGH VOLUME shown with part number
03
04Oil pump drive shaft rod shown in block
05Oil pump location on block
06Oil pump location on block
07Oil Pump shown with drive rod installed into HEX receptacle.
08Oil pump mounting bolts shown installed Use a 9/16 open end wrench to tighten bolts into block
09Oil pump screen shown with gaskets and bolts installed. Ready to mate with pump
10Oil pump screen base mounting area
11Tighten oil pump screen to oil pump with a 1/2 wrench
12Oil pump screen properly mounted to pump
13After installation inspection of installed Melling oil pump and screen
14After installation inspection of installed melling oil pump and screen
15After installation inspection of installed melling oil pump and screen
