Installing the Oil Filter Adapter on Small Block Ford 302

New oil filter adapter shown installed in the engine block

Installing the Oil Filter Adapter on Small Block Ford 302

This is a simple yet very important step in the process. You will need to pick up an oil filter adapter to mount the oil filter properly. This part is made by Allstar Performance Part Number: ALL92003. The existing adapter is removed by a hefty 32MM socket. Once removed, clean the area where the filter gasket will be installed on the block. Then thread the new oil filter adapter into the block and tighten with a HEX socket. Thread your oil filter onto the block and you’re done!

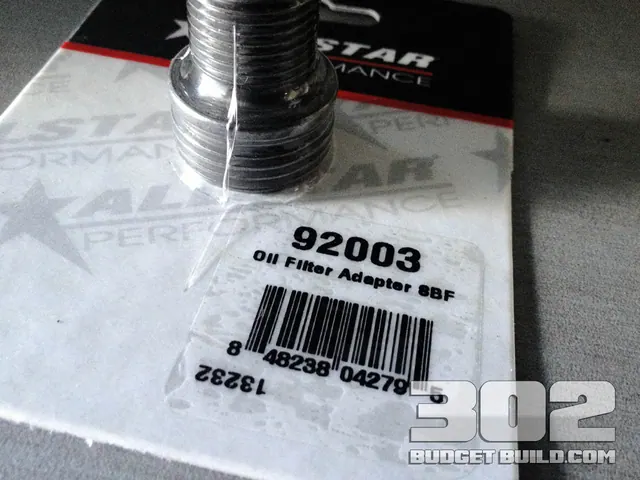

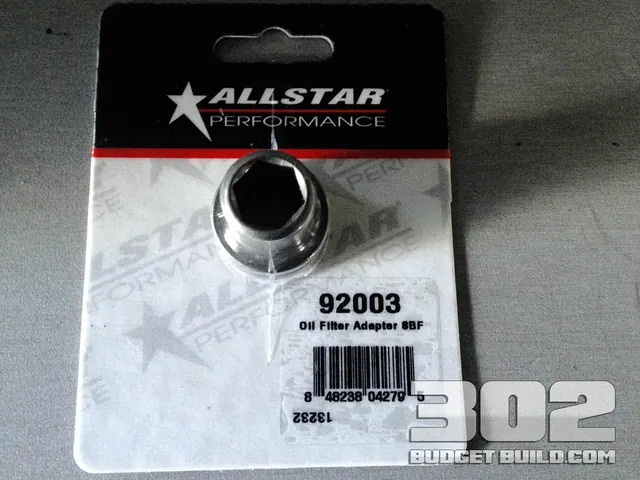

Installing the Oil Filter Adapter on Small Block Ford 302 Part Number: 92003 by Allstar

Installing the Oil Filter Adapter on Small Block Ford 302 Part Number: 92003 by Allstar

Installing the Oil Filter Adapter on Small Block Ford 302 Part Number: 92003 by Allstar

Installing the Oil Filter Adapter on Small Block Ford 302 Part Number: 92003 by Allstar

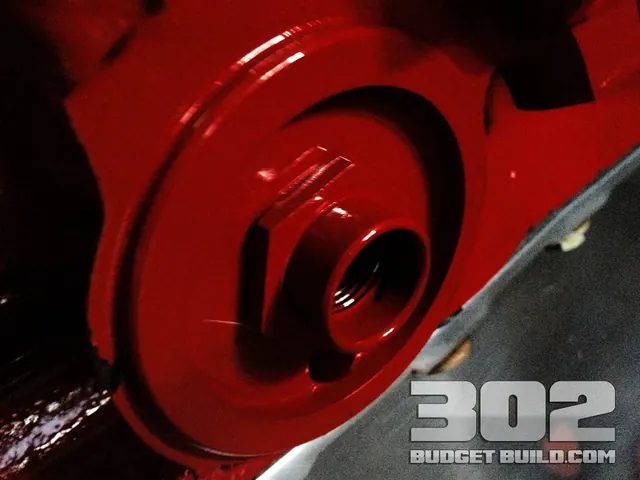

Old oil filter receptacle must come out first.

Old oil filter receptacle must come out first.

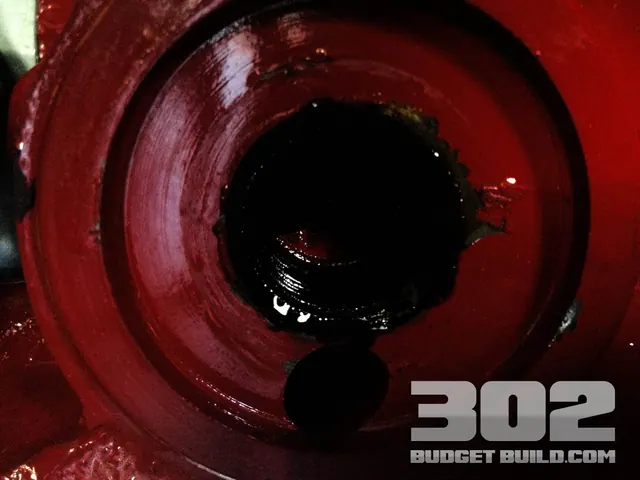

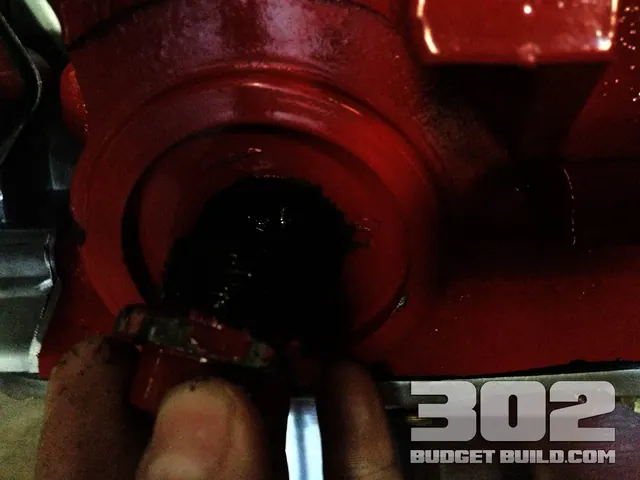

Shot of the engine block with the oil filter receptacle pulled out

Shot of the engine block with the oil filter receptacle pulled out

Shot of the engine block with the oil filter receptacle pulled out

Shot of the engine block with the oil filter receptacle pulled out

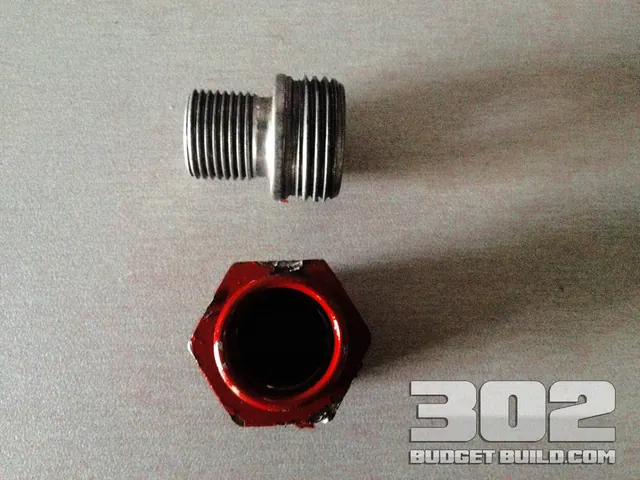

New oil filter adapter on bench next to oild receptacle

New oil filter adapter on bench next to old receptacle

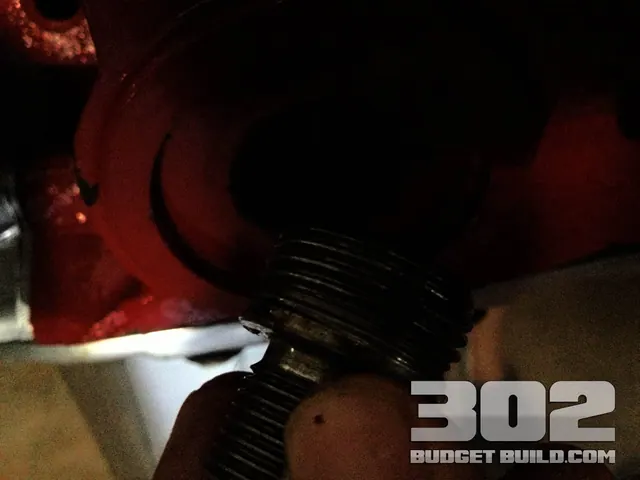

Install the new oil filter adapter in the engine

Install the new oil filter adapter in the engine

New oil filter adapter shown installed in the engine block

New oil filter adapter shown installed in the engine block

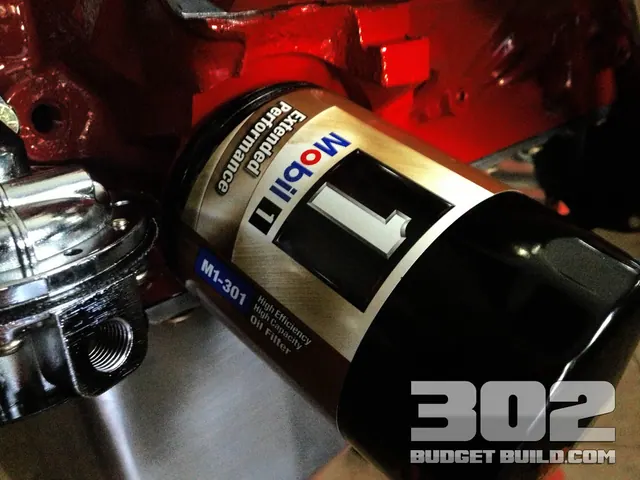

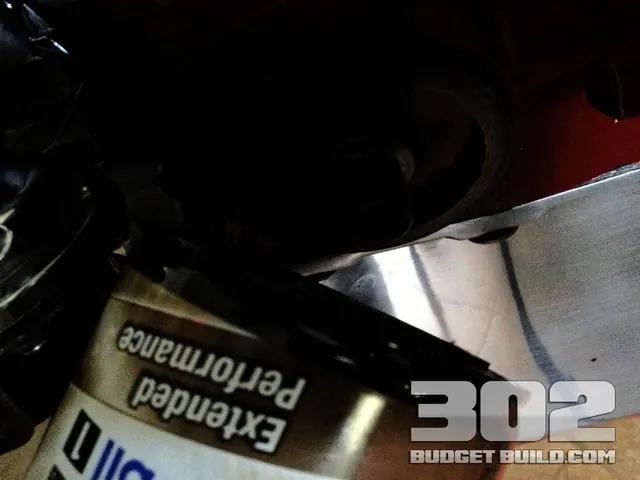

Install a new Mobil 1 oil filter or oil filter of your choice after the adapter is installed

Install a new Mobil 1 oil filter or oil filter of your choice after the adapter is installed

Install a new Mobil 1 oil filter or oil filter of your choice after the adapter is installed

Install a new Mobil 1 oil filter or oil filter of your choice after the adapter is installed

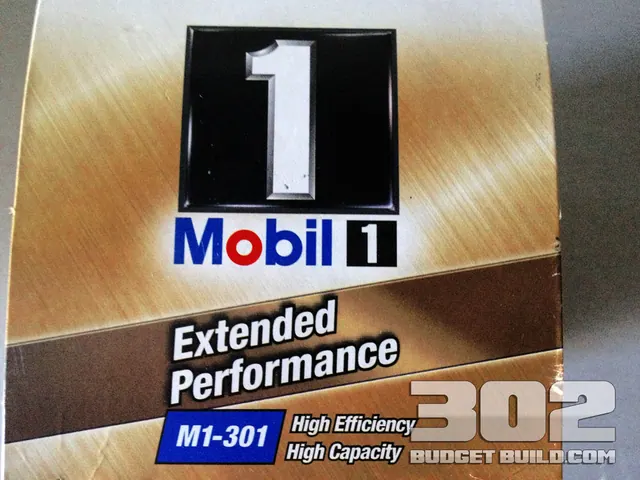

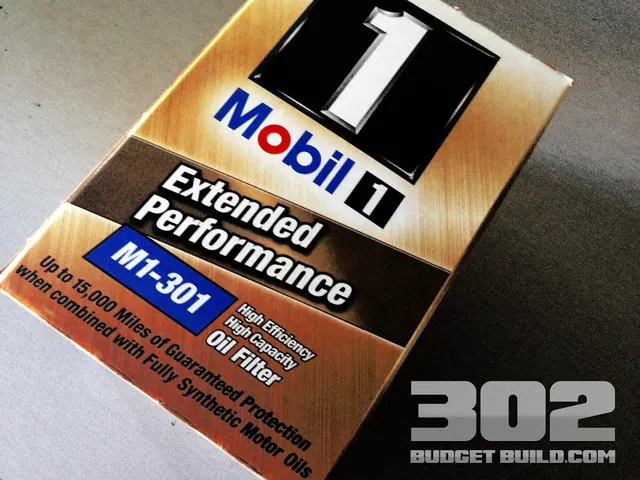

The Mobil 1 oil filter part number: MI-301 that fits the small block ford 302

The Mobil 1 oil filter part number: MI-301 that fits the small block Ford 302

The Mobil 1 oil filter part number: MI-301 that fits the small block ford 302

The Mobil 1 oil filter part number: MI-301 that fits the small block Ford 302
