When installing the roller rockers and pushrods on the small block Ford 302 you want to pay attention to a few important details. Always work in a clean workspace and stay organized. This is a process that is a bit time consuming so make sure you have an hour or so set aside to do the job the right way.

Begin by checking pushrod length. Always make sure your roller rocker ball is perfectly centered on the valve tip. Once you have your desired pushrod length, order heat treated Chromoly pushrods if you have an aftermarket camshaft and valve springs. Begin the installation by placing a ratchet and socket on the crank bolt. You will be turning over the engine several times by hand to complete this process.



Organize your new rocker U-Channels, pushrods, and roller rockers on your workbench.

[box type=”warning”] BEFORE YOU BEGIN: When working with self-aligning pedestal mount roller rockers: Install a new rocker channel and one roller rocker onto the head. Place another rocker bolt into the boss on the head where you will be working. Tighten the rocker down to the head to establish a straight channel. Now you can begin installing the first roller rocker and pushrod.[/box]

Get one roller rocker, pedestal, and bolt ready. Install a pushrod into the appropriate area. Make sure the lifter is on the base circle of the cam. You can determine base circle by rotating the engine until the lifter next to the one you are working on begins to rise.

Now install the roller rocker onto the head and begin to hand-tighten the bolt. Tighten with one hand while twisting the pushrod with the other hand. Stop hand tightening at the point where you feel resistance on the pushrod. This is zero-lash. Now get your torque wrench, set the torque specification to 20 ft. lbs. and install the hex head at the 12 o’clock position on the rocker bolt. You should hit your desired 20 ft. lbs at between 1/4 and 1/2 a turn. If this result is not achieved you will need to add a shim or two or get longer or shorter pushrods. Ask questions if you get stuck here.

Repeat this step 15 more times and you’re done.



PART NUMBERS:

ROLLER ROCKERS (Scorpion Racing 1.6 Ratio PEDESTAL MOUNT): SCP1021BL ~ $265.97 SUMMIT RACING Purchase Here
PUSHRODS (Comp Cams Heat Treated Chromoly 5/16): 7917-16 ~ $134.97 SUMMIT RACING Purchase Here
ROCKER ARM CHANNELS (Ford Racing): M-6588-A50 ~ $22.97 SUMMIT RACING Purchase Here

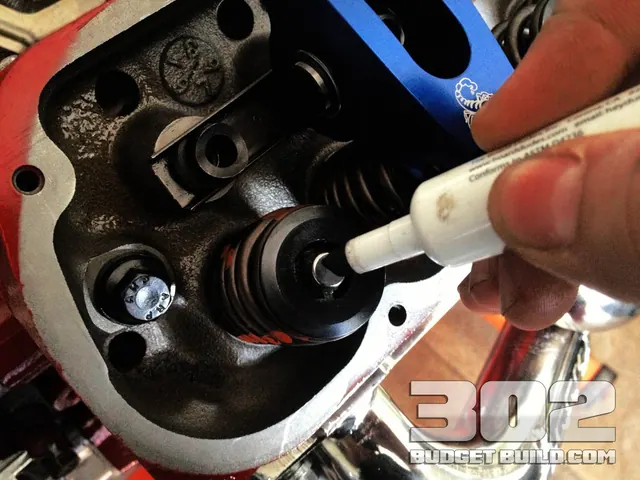

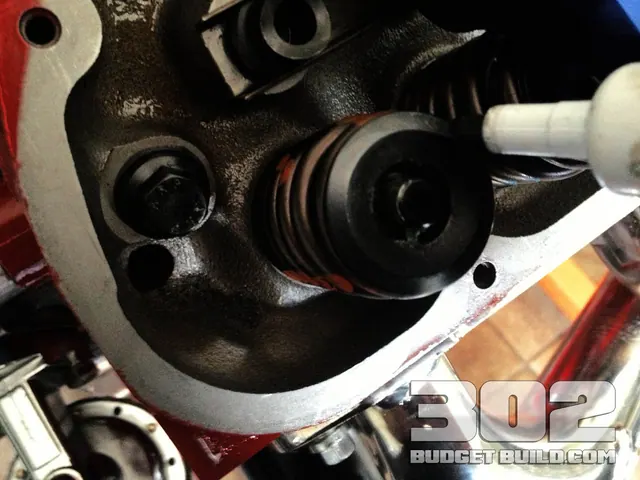

Use a dry erase marker to mark your valve stem tip.

Use a dry erase marker to mark your valve stem tip.

Color the entire tip black.

Color the entire tip black.

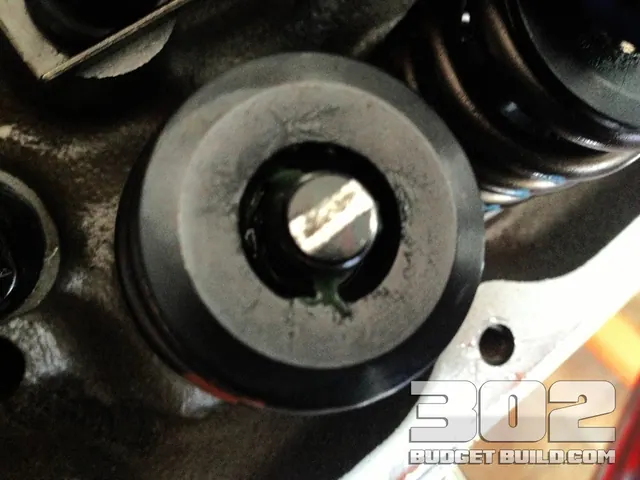

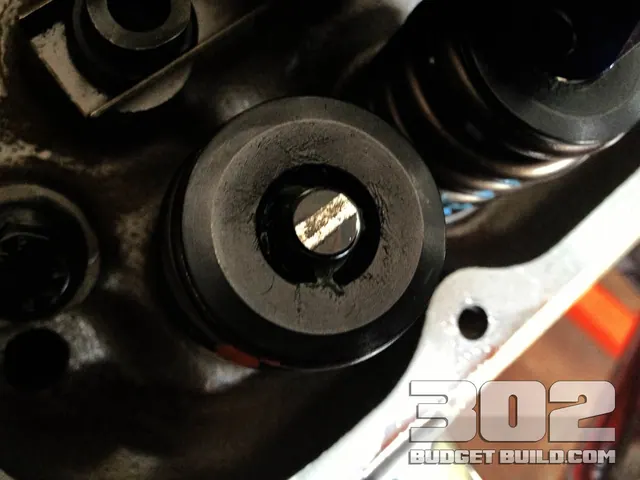

Once you roll the engine over 2 times with a rocker and pushrod you should achieve this result.

Once you roll the engine over 2 times with a rocker and pushrod you should achieve this result.

Once you roll the engine over 2 times with a rocker and pushrod you should achieve this result.

Once you roll the engine over 2 times with a rocker and pushrod you should achieve this result.

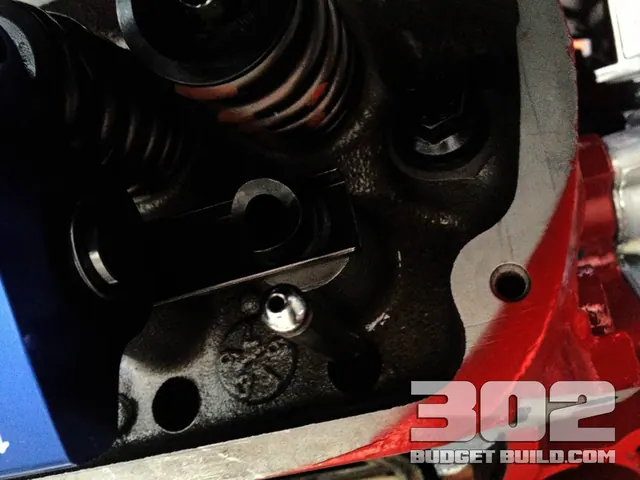

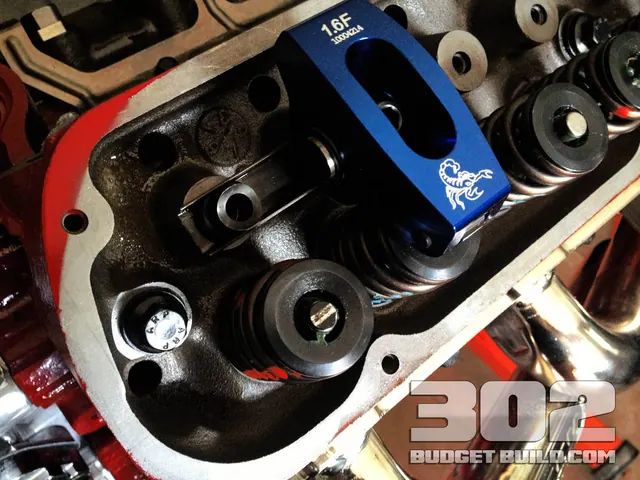

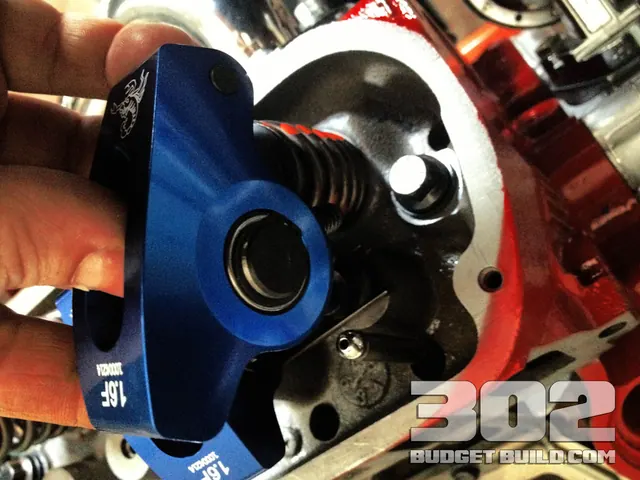

This is how you will begin the installation. Make sure the right hand side rocker is tightened down to ensure a straight install.

This is how you will begin the installation. Make sure the right hand side rocker is tightened down to ensure a straight install.

This is how you will begin the installation. Make sure the right hand side rocker is tightened down to ensure a straight install.

This is how you will begin the installation. Make sure the right hand side rocker is tightened down to ensure a straight install.



This is how you will begin the installation. Make sure the right hand side rocker is tightened down to ensure a straight install.

This is how you will begin the installation. Make sure the right hand side rocker is tightened down to ensure a straight install.

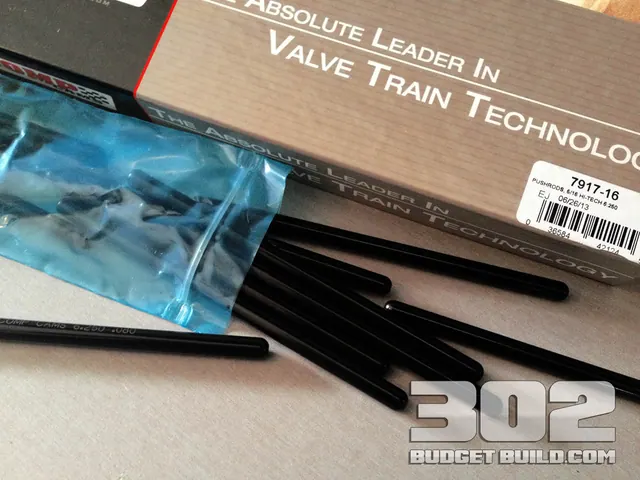

Comp Cams Heat Treated Chromoly Pushrods 7917-16

Comp Cams Heat Treated Chromoly Pushrods 7917-16

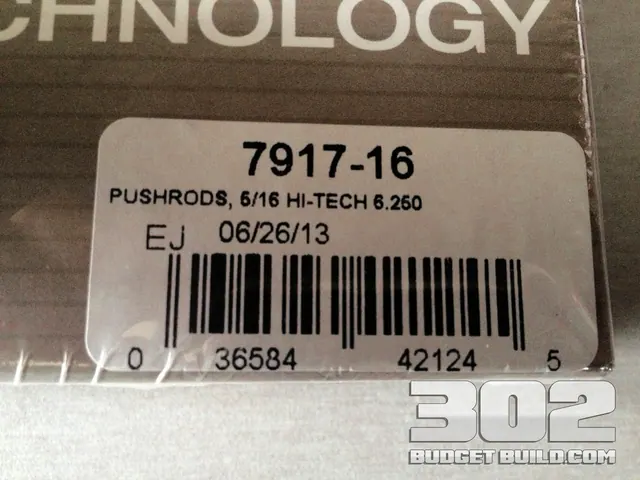

Comp Cams Heat Treated Chromoly Pushrods 7917-16 These are 6.250″ long

Comp Cams Heat Treated Chromoly Pushrods 7917-16 These are 6.250″ long



Comp Cams Heat Treated Chromoly Pushrods 7917-16

Comp Cams Heat Treated Chromoly Pushrods 7917-16

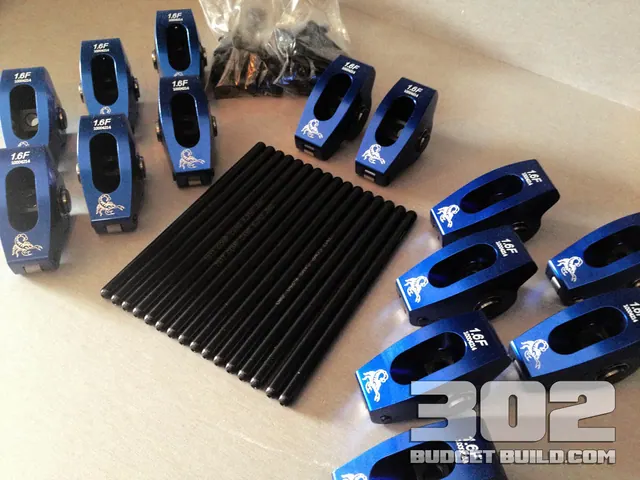

This is the roller rockers and pushrods ready to be installed.

This is the roller rockers and pushrods ready to be installed.

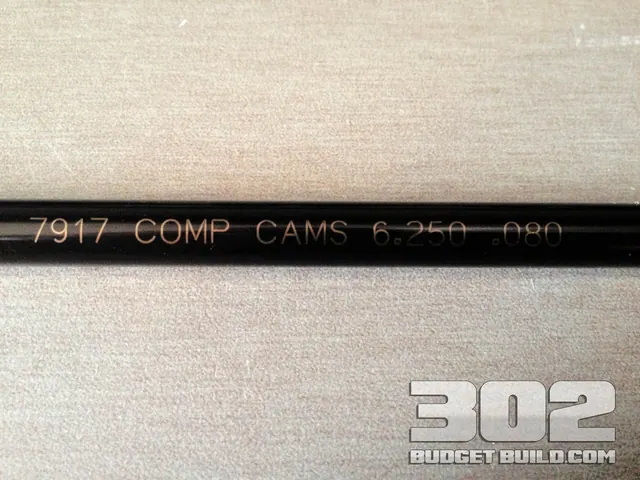

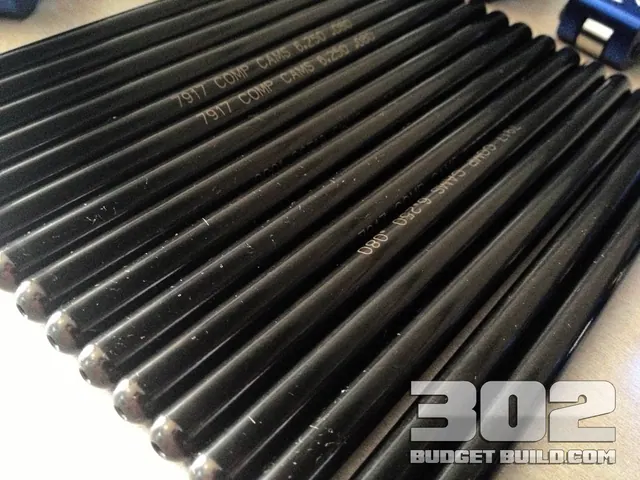

Here’s a closeup of the awesome comp cams pushrods.

Here’s a closeup of the awesome comp cams pushrods.

Here’s a closeup of the awesome comp cams pushrods.

Here’s a closeup of the awesome comp cams pushrods.

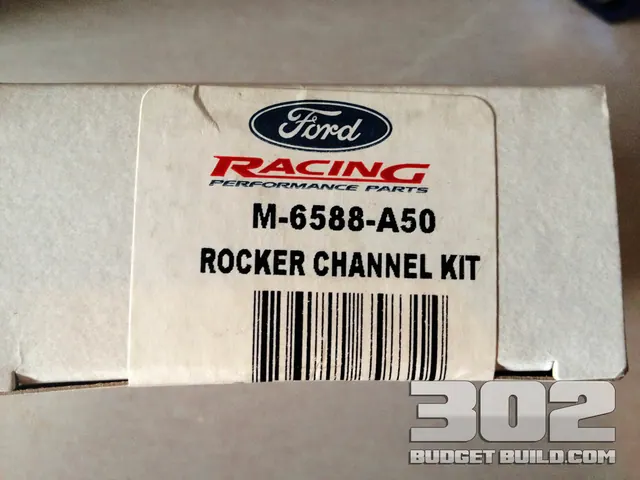

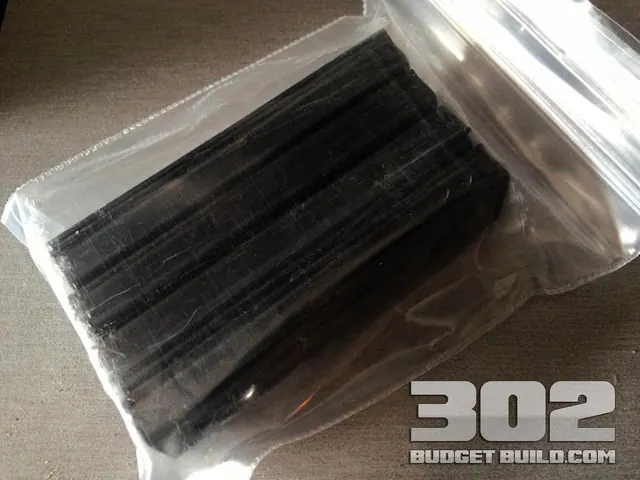

Make sure you pick up a new set of U-Channels Rocker Channels from Ford Racing. These are a MUST!

Make sure you pick up a new set of U-Channels Rocker Channels from Ford Racing. These are a MUST!

Make sure you pick up a new set of U-Channels Rocker Channels from Ford Racing. These are a MUST!

Make sure you pick up a new set of U-Channels Rocker Channels from Ford Racing. These are a MUST!

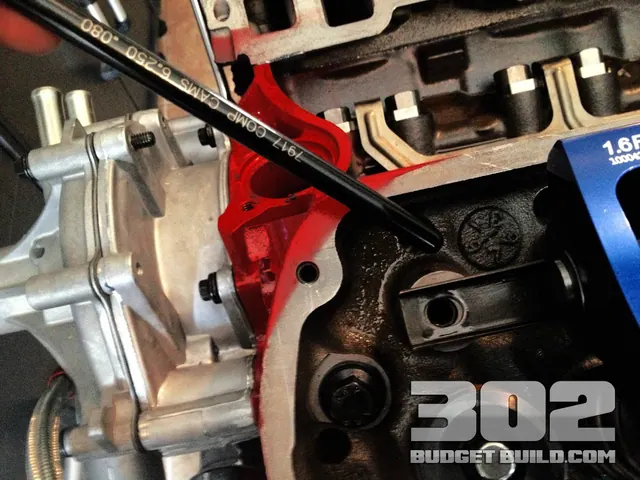

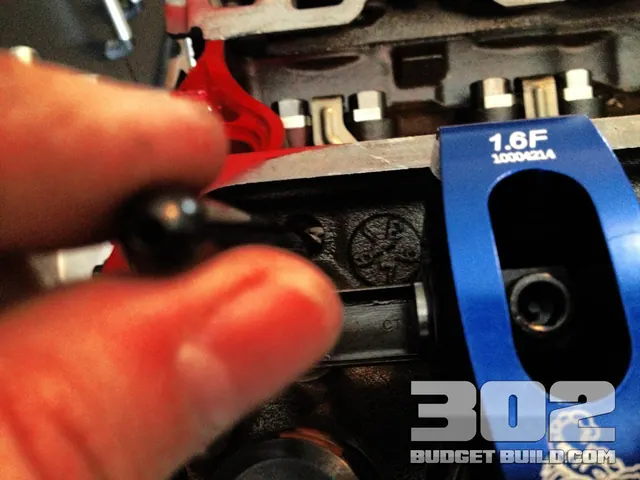

Install a pushrod at base circle of the lifter position on camshaft.

Install a pushrod at base circle of the lifter position on camshaft.

Install a pushrod at base circle of the lifter position on camshaft.

Install a pushrod at base circle of the lifter position on camshaft.

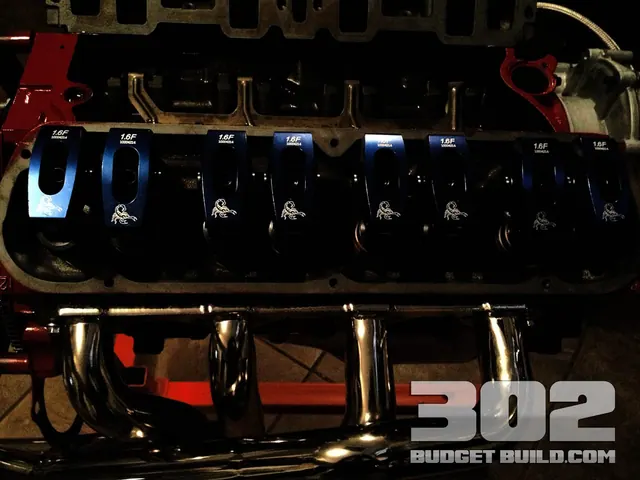

This is what it looks like when the valve train is completed.

This is what it looks like when the valve train is completed.

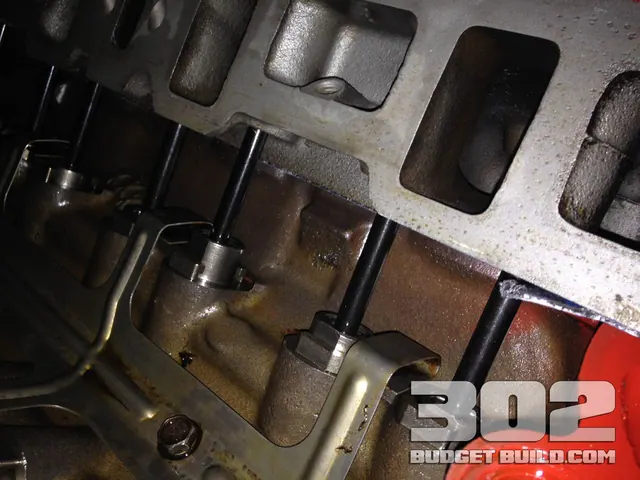

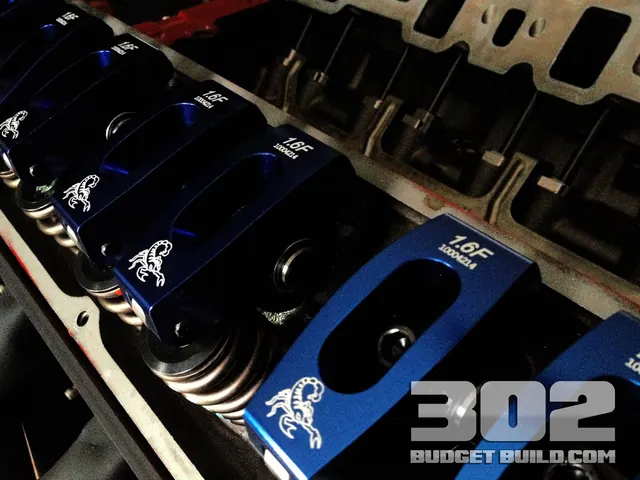

Scorpion 1.6 ratio roller rockers installed on crane cams beehive springs with Ford Racing roller lifters, and channels. Pushrods by comp cams heat treated chromoly style.

Scorpion 1.6 ratio roller rockers installed on crane cams beehive springs with Ford Racing roller lifters, and channels. Pushrods by comp cams heat treated chromoly style.

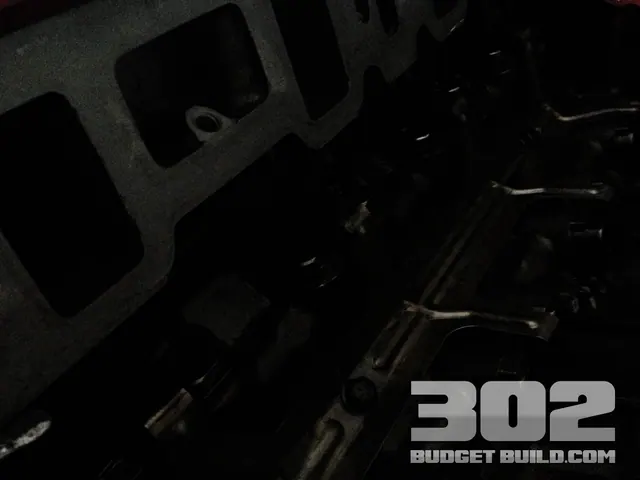

Closeup of the pushrods installed

Closeup of the pushrods installed



Scorpion 1.6 ratio roller rockers installed on crane cams beehive springs with Ford Racing roller lifters, and channels. Pushrods by comp cams heat treated chromoly style.

Scorpion 1.6 ratio roller rockers installed on crane cams beehive springs with Ford Racing roller lifters, and channels. Pushrods by comp cams heat treated chromoly style.

Scorpion 1.6 ratio roller rockers installed on crane cams beehive springs with Ford Racing roller lifters, and channels. Pushrods by comp cams heat treated chromoly style.

Scorpion 1.6 ratio roller rockers installed on crane cams beehive springs with Ford Racing roller lifters, and channels. Pushrods by comp cams heat treated chromoly style.

Scorpion 1.6 ratio roller rockers installed on crane cams beehive springs with Ford Racing roller lifters, and channels. Pushrods by comp cams heat treated chromoly style.

Scorpion 1.6 ratio roller rockers installed on crane cams beehive springs with Ford Racing roller lifters, and channels. Pushrods by comp cams heat treated chromoly style.

Scorpion 1.6 ratio roller rockers installed

Scorpion 1.6 ratio roller rockers installed

Scorpion 1.6 ratio roller rockers installed

Scorpion 1.6 ratio roller rockers installed

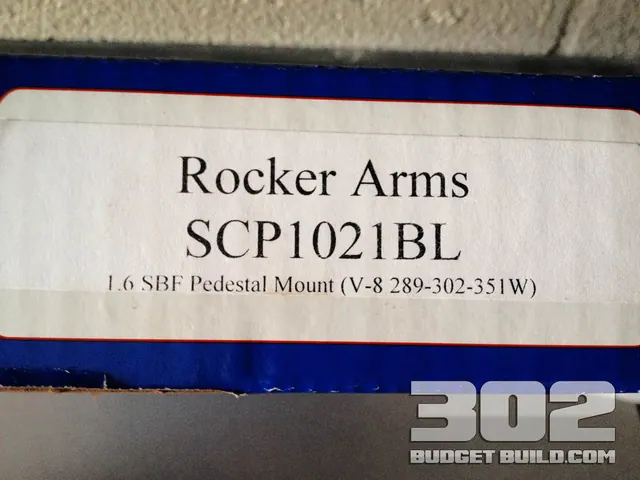

Scorpion 1.6 ratio roller rockers installed Part Number: SCP1021BL
