This is a fairly straight forward installation and only a few considerations need to be made. Purchase a quality aluminum oil pan that is front sump style to match your new oil pump & pickup screen. When considering an oil pan, make sure the mounting lip is thick and has a good amount of material. Use a 1 piece rubber oil pan gasket that has the steel within the gasket. When mounting the oil pan to the block, ensure that the mounting surface is clean and free of any contaminants. Use ONLY GRADE 8 mounting hardware and washers. Torque the bolts to 15 Ft. Lbs. and recheck once all bolts are installed. The bolts you will need are 1/4″ x 20 x 1″ and the end bolts are 5/16 x 20 x 1″

PART NUMBERS:

OIL PAN GASKET (FORD RACING) 1 PIECE STYLE: M-6710-A50 ~ $19.97 SUMMIT RACING Purchase Here

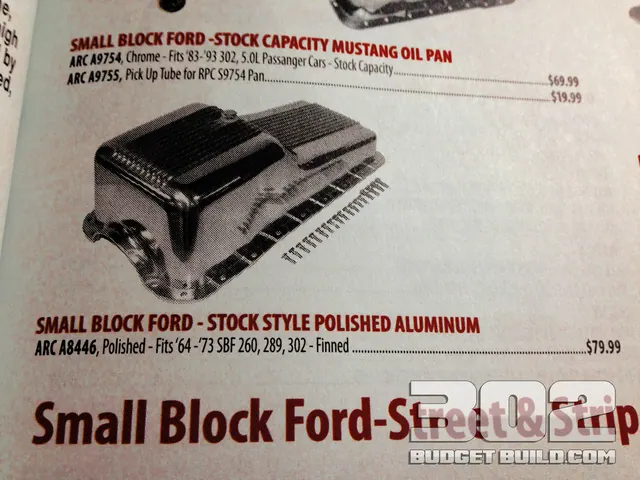

OIL PAN (KMK PERFORMANCE): ARC A8446 ~ $79.99 EBAY

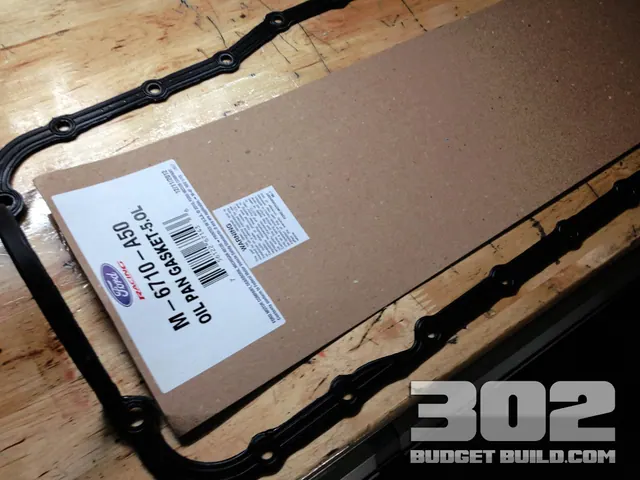

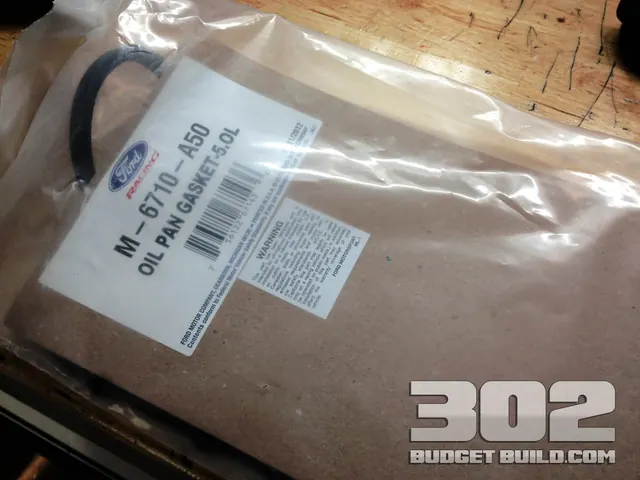

Oil Pan gasket by Ford Racing. 1 Piece rubber style.

Oil Pan gasket by Ford Racing. 1 Piece rubber style.

Oil Pan Installation on Small Block Ford 302

Oil Pan Installation on Small Block Ford 302

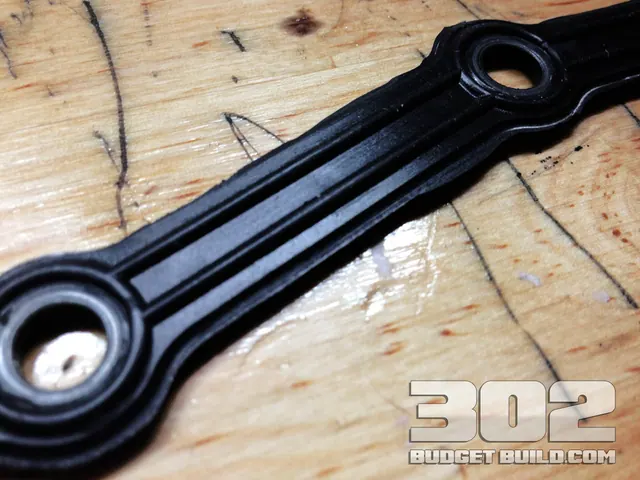

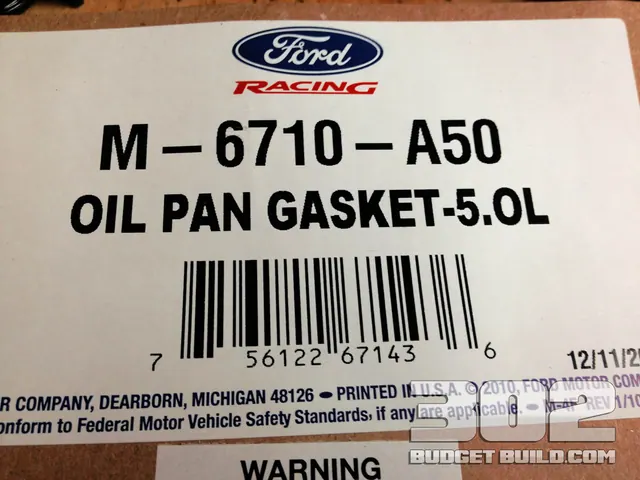

Oil Pan Installation on Small Block Ford 302 Par Number: m-6710-a50

Oil Pan Installation on Small Block Ford 302 Part Number: m-6710-a50

Oil Pan Installation on Small Block Ford 302 Par Number: m-6710-a50

Oil Pan Installation on Small Block Ford 302 Part Number: m-6710-a50

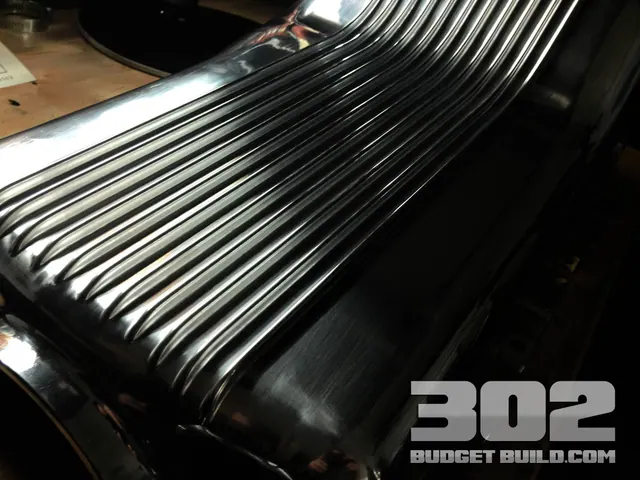

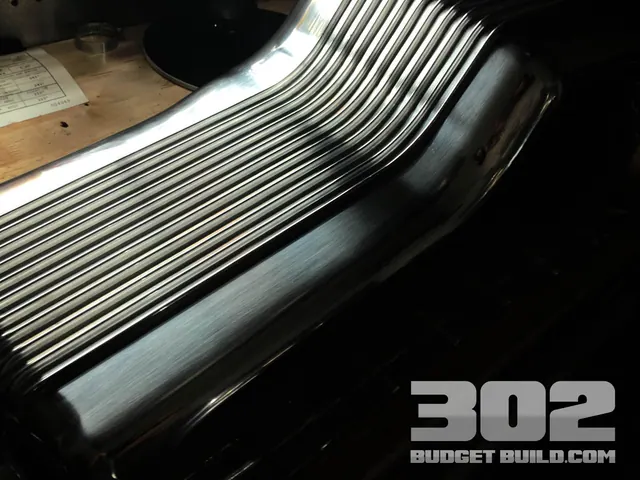

Aluminum oil pan for the small block ford 302 5.0

Aluminum oil pan for the small block ford 302 5.0

Aluminum oil pan for the small block ford 302 5.0

Aluminum oil pan for the small block ford 302 5.0

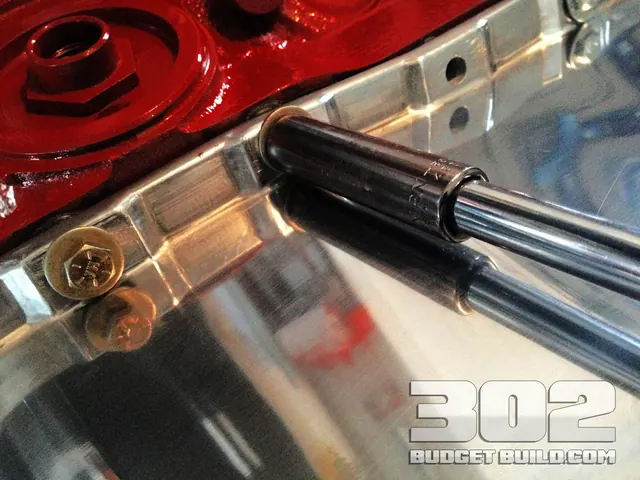

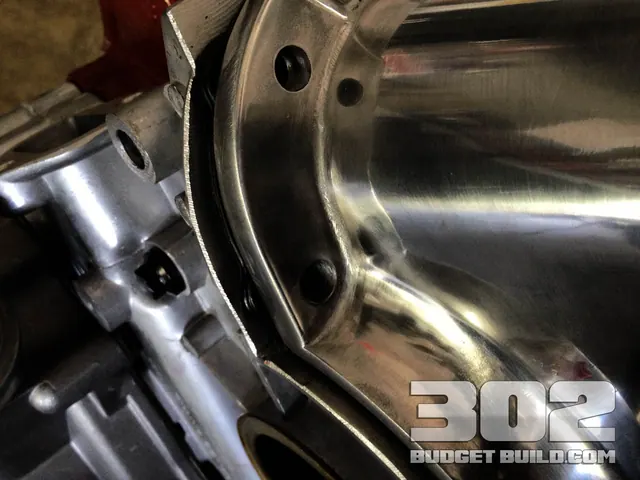

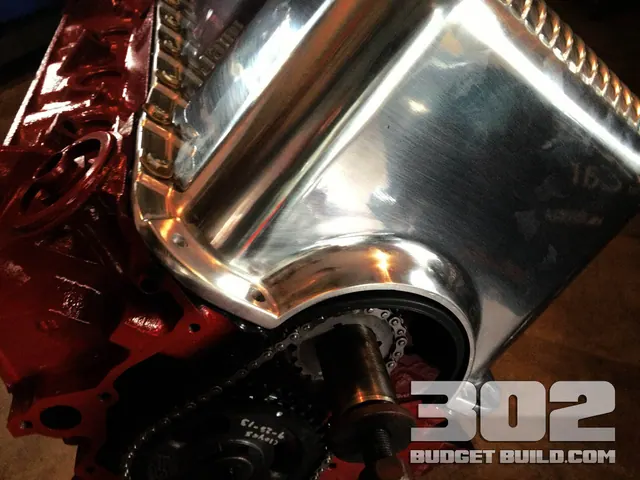

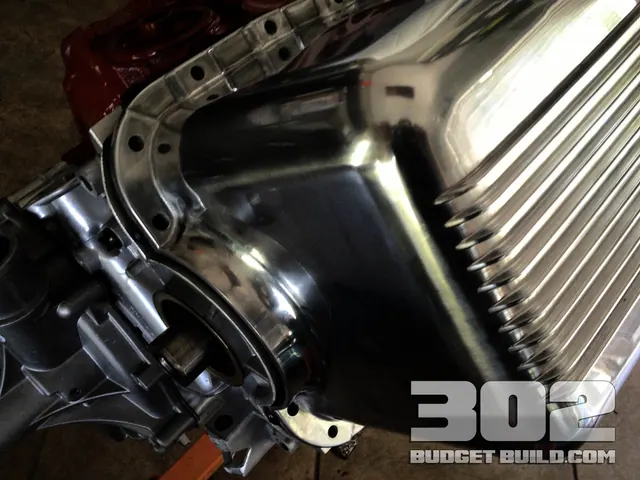

Grade 8 hardware used to attach the oil pan to the engine block
